MARATHON SW M42

Special geometry for cutting materials with internal stress

Positive tooth (K)

Solid materials

Dimension 34 x 1.10 - 67 x 1.60 mm

Price calculation for MARATHON SW M42

Select dimension:

Blade length in mm:

Price:

Are you interested in a band saw blade?

Write to us and we will recommend suitable cutting parameters in addition to the price.

Send inquiry

Product information Technical data Materials overview

Application

materials with residual internal stress
all metals to 1000 N/mm²

Benefits

no jamming in the cutting channel of material with residual stress
cost savings due to high performance and long service life
excellent cutting quality thanks to very smooth and quiet operation
less post-processing due to low burr formation

Features

extra wide tooth setting and variable tooth pitch
M42 cutting edge with positive rake angle
resistant to jamming in the material

Photo of the MARATHON SW M42 band saw blade

MARATHON SW M42 — Special geometry for cutting materials with internal stress

MARATHON SW M42 has an extra wide tooth setting which prevents the band saw blade from jamming. The special tooth setting of the SW creates an extra wide cutting channel, allowing the blade to run freely even in the event of decreasing internal stresses in the material.

This bimetal band saw blade impresses especially with its high performance when cutting solid materials and profiles. Its versatility for a wide range of materials makes cutting particularly economical.

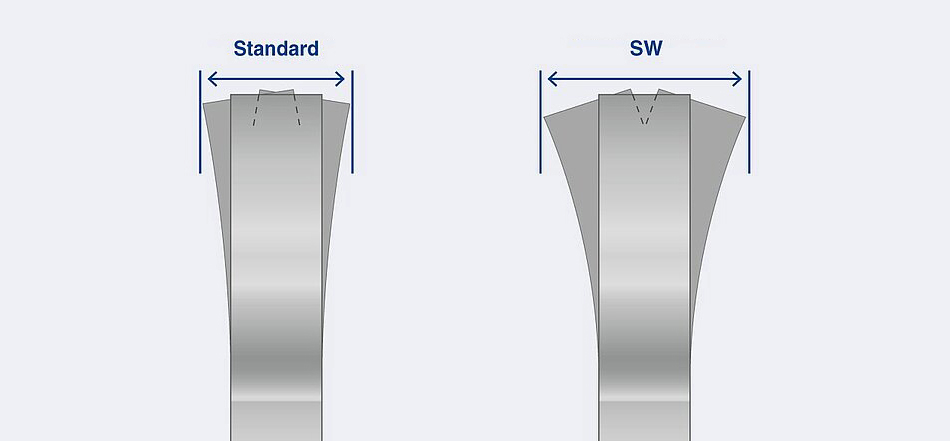

Illustration of the difference between standard and wide tooth setting SW

#530 MARATHON SW M42

Dimensions	Number of teeth per inch
width x thickness	4 - 6	3 - 4	2 - 3	1,25
34 x 1,10	K			K
41 x 1,30	K	K	K
54 x 1,60		K	K
67 x 1,60		K	K
Cutting length in solid material (mm):	50 - 100	80 - 170	150 - 300	300 - 800
