MARATHON X3000

The special band saw blade for high-strength and difficult-to-cut materials

Positive tooth (K)

Solid materials

Dimension 27 x 0.90 - 67 x 1.60 mm

Price calculation for MARATHON X3000

Select dimension:

Blade length in mm:

Price:

Are you interested in a band saw blade?

Write to us and we will recommend suitable cutting parameters in addition to the price.

Send inquiry

Product information Technical data Materials overview

Application

high-alloy austenitic materials
all metals from 1000 N/mm²
forged ingots with scales

Benefits

good durability even in difficult to cut materials
low material loss due to precise cuts
high wear resistance
cost savings due to less frequent tool changes

Features

X3000 cutting edge with positive rake angle
high stability and abrasion resistance of the cutting edge
variable tooth pitch and standard setting

Photo of the MARATHON X3000 band saw blade

MARATHON X3000 — The special band saw blade for high-strength and difficult-to-cut materials

WIKUS has developed the X3000 cutting material specifically for cutting high-alloy, difficult-to-machine materials as well as hardened steels with tensile strengths above 1000 N/mm². It is characterized by high hardness and excellent toughness. This combination of material properties leads to particularly good cutting edge stability.

In combination with a tempered alloy steel backing material, the MARATHON X3000 bimetal band saw blade achieves excellent long-term performance.

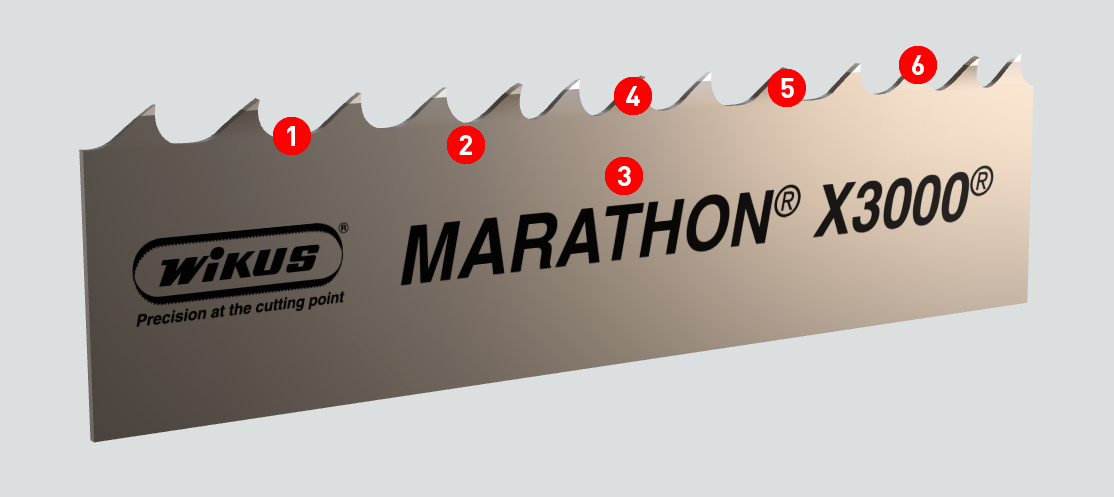

Photo of the MARATHON X3000 band saw blade

Special surface treatment for extra smooth rounding of the tooth gap to prevent blade cracking.
Variable tooth pitch with 5 tooth intervals for optimum chip separation and reduced cutting edge stress even at high friction.
Body made of tempered alloy steel with excellent properties for continuous operation.
The positive rake angle of the tooth face makes it easier to cut into the material and forms the chip better.
High cutting edge stability and wear resistance.
Modified cutting edge material with high hardness enables cutting of metals with tensile strength exceeding 1000 N/mm².

#531 MARATHON X3000

Dimensions	Number of teeth per inch
width x thickness	5 - 8	4 - 6	3 - 4	2 - 3	1,4 - 2
27 x 0,90	K	K	K	K
34 x 1,10		K	K	K
41 x 1,30		K	K	K
54 x 1,60		K	K	K	K
67 x 1,60			K	K	K
Cutting length in solid material (mm):	30 - 60	50 - 100	80 - 170	150 - 300	250 - 550
