MARATHON M42

The all-rounder for small and large cross sections

Positive tooth (K)

Solid materials

Dimension 13 x 0.65 - 80 x 1.60 mm

Price calculation for MARATHON M42

Select dimension:

Blade length in mm:

Price:

Are you interested in a band saw blade?

Write to us and we will recommend suitable cutting parameters in addition to the price.

Send inquiry

Product information Technical data Materials overview

Application

industrial applications
medium to large workpieces
all metals up to tensile strength 1000 N/mm²
cutting in pieces, layers and bundles
solid materials

Benefits

long service life and high productivity
less frequent belt changes due to wide range of applications
low noise due to smooth running
less need for allowances due to straight cuts
less post-processing due to smoother cutting surface

Features

M42 cutting edge
rake angle: positive (K)
variable or constant tooth pitch
standard setting
high body straightness

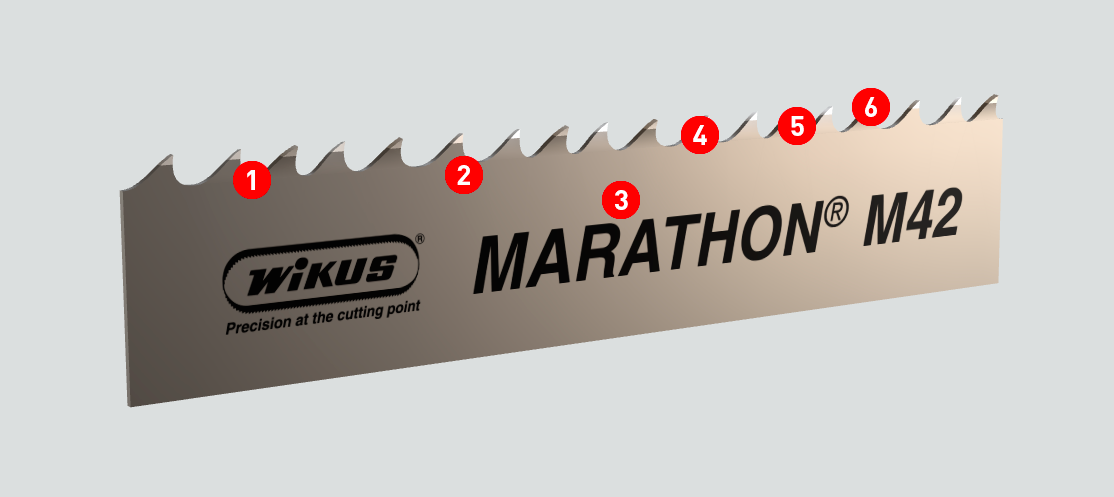

Photo of the MARATHON M42 band saw blade

MARATHON M42 — The all-rounder for small and large cross sections

The MARATHON M42 is the epitome of an economical saw blade with a wide range of applications and consistently high quality. This bimetallic band saw blade is designed for customers with more intensive cutting processes and where tool reliability is a desirable asset, for example in industrial plants.

Superfinished band saw blade and sharp cutting edges increase the life and improve the quality of the cutting surface. The smooth surface of the blade also protects the machine guides and increases its resistance to wear. The new manufacturing process, among other things, also guarantees extremely precise tooth distribution and improved flatness of the saw blade body.

Photo of the MARATHON M42 band saw blade

Special surface treatment for extra smooth rounding of the tooth gap to prevent blade cracking.
Variable tooth pitch with 5 tooth interval for optimum chip separation and reduced stress on the cutting edge.
Body made of alloy steel with high flexibility. Special surface treatment ensures less friction in the guides.
The positive rake angle makes it easier to cut into the material and forms the chip better.
Specially rounded cutting edges ensure a consistently long service life.
High-alloy tool steel with a hardness of 69 HRC allows cutting materials up to tensile strength 1000 N/mm².

Play video

#529 MARATHON M42

Dimensions	Number of teeth per inch
width x thickness	5 - 8	4 - 6	3 - 4	2 - 3	1,4 - 2	1 - 1,4	0,75 - 1,25
27 x 0,90	K	K	K	K
34 x 1,10	K	K	K	K	K
41 x 1,10		K	K	K	K
41 x 1,30	K	K	K	K	K
54 x 1,30		K	K	K	K
54 x 1,60		K	K	K	K	K
67 x 1,60		K	K	K	K	K	K
80 x 1,60			K	K	K	K	K
Cutting length in solid material (mm):	30 - 60	50 - 100	80 - 170	150 - 300	250 - 550	500 - 1000	700 - 1400

positive tooth

#529 MARATHON M42

Dimensions	Number of teeth per inch
width x thickness	6	4	3	1,25
13 x 0,65	K	K
13 x 0,90	K	K	K
20 x 0,90	K	K	K
20 x 1,10			K
27 x 0,90			K
34 x 1,10				K
41 x 1,30				K
Cutting length in solid material (mm):	50 - 80	80 - 120	120 - 200	300 - 800
