SKALAR X3000

Powerful band saw blade for materials with high tensile strength

Positive tooth (K)

Solid materials

Dimension 27 x 0.90 - 100 x 1.60 mm

Price calculation for SKALAR X3000

Select dimension:

Blade length in mm:

Price:

Are you interested in a band saw blade?

Write to us and we will recommend suitable cutting parameters in addition to the price.

Send inquiry

Product information Technical data Materials overview

Application

excellent cutting performance in high alloy austenitic materials
for electrofusion remelted materials, difficult to cut non-ferrous alloys
materials exceeding tensile strength 1000 N/mm²
continuous operation in industrial production on large blocks
particularly suitable for a variety of materials

Benefits

high productivity thanks to excellent cutting performance
lower cutting pressure, smooth running and flat cutting surfaces
optimum chip separation thanks to clever tooth geometry
less frequent blade replacement due to extended service life

Features

ground geometry with specially adapted tooth pitch
X3000 cutting edge with positive rake angle
special tooth setting for optimum chip separation
high hardness, wear resistance and toughness thanks to X3000 cutting material

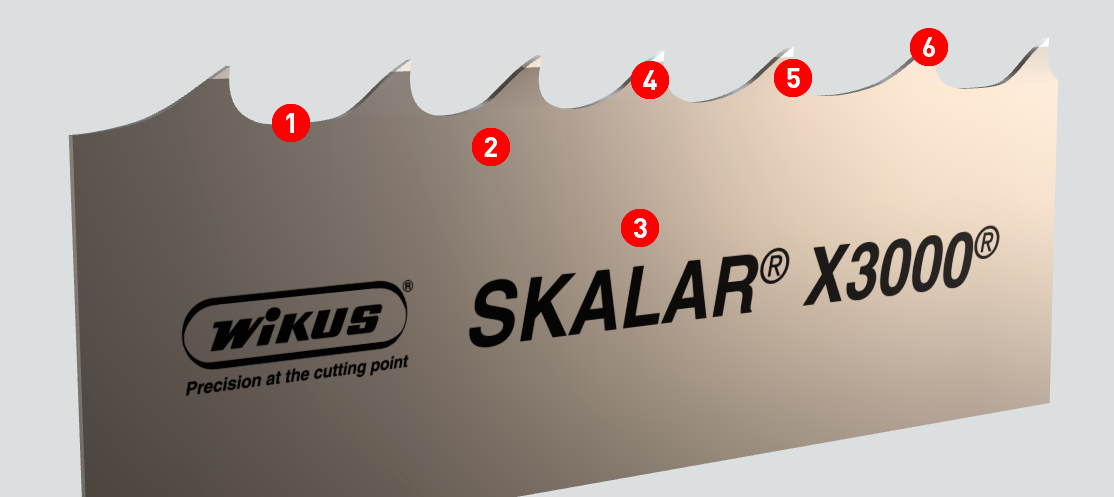

Photo of the SKALAR X3000 band saw blade

SKALAR X3000 — Powerful band saw blade for materials with high tensile strength

The modified cutting material X3000 enables precise cutting of highly resistant materials and special alloys. This cutting material, available exclusively from WIKUS, combines even higher tooth tip hardness and wear resistance with superior toughness compared to M42 cutting material.

In combination with a tempered alloy steel backing material, the SKALAR X3000 bimetal band saw blade achieves excellent long-term performance.

Photo of the SKALAR X3000 band saw blade

Special surface treatment for extra smooth rounding of the tooth gap to prevent blade cracking.
Variable tooth pitch with 5 tooth interval for optimum chip separation and reduced stress on the cutting edge with very quiet and smooth running.
Body made of high alloy tempered steel with high flexibility. Special surface treatment ensures less friction in the guides.
Highly positive tooth rake angle with ground geometry facilitates cutting into the material and better chip formation. Unsurpassed cutting performance.
The ground tooth geometry delivers high cutting edge accuracy and excellent cutting behaviour. It offers a reliable blade for a wide range of materials.
Modified X3000 cutting edge material (exclusive to WIKUS) with high hardness and durability allows cutting materials exceeding tensile strength 1000 N/mm².

#537 SKALAR X3000

Dimensions	Number of teeth per inch
width x thickness	2,5 - 3,4	1,8 - 2,5	1,4 - 1,8	1,2 - 1,6	1 - 1,4	0,7 - 1
27 x 0,90	K
34 x 1,10	K	K
41 x 1,30	K	K	K
54 x 1,30		K
54 x 1,60	K	K	K	K	K
67 x 1,60		K	K	K	K	K
80 x 1,60			K	K	K	K
100 x 1,60						K
Cutting length in solid material (mm):	100 - 220	180 - 350	300 - 600	400 - 700	500 - 1000	900 - 2000
